Microfluidic Electrophoresis Analyzer
Certificate for Exportation of Medical Products/CFDA Certificate NO.20220602
CE Registration Letter No.
NL-CA002-2022-67716 (Netherlands/CIBG)

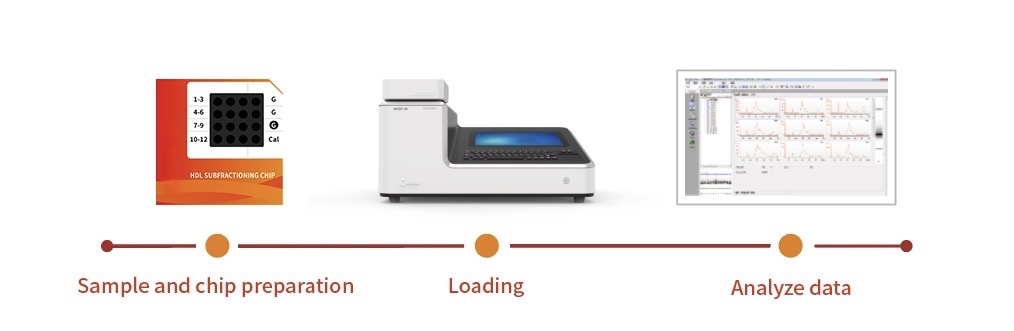

1) Detection process
The sample moves from the sample well through the micro-channels
The micro-channels of the glass chip are filled with a sieving polymerand fluorescent dye
The sample is injected into the separation channel
Sample components are electro-phoretically separated
Components are detected by the irfluorescence and translated into gel-like diagram (bands) and electropherograms (peaks)
High-throughput Detection

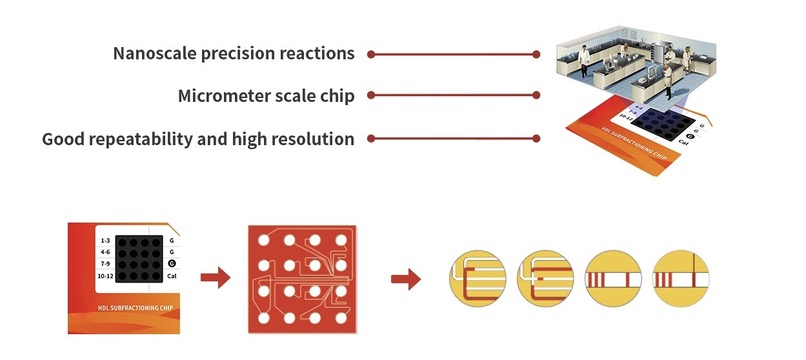

2) Microfluidic Chip Analysis
Test 12 Samples in 30 min
Dozens of Times Faster than Traditional GGE
Microfluidic Electrophoresis Analyzer
Certificate for Exportation of Medical Products/CFDA Certificate NO.20220602
CE Registration Letter No.
NL-CA002-2022-67716 (Netherlands/CIBG)
1) Detection process
The sample moves from the sample well through the micro-channels
The micro-channels of the glass chip are filled with a sieving polymerand fluorescent dye
The sample is injected into the separation channel
Sample components are electro-phoretically separated
Components are detected by the irfluorescence and translated into gel-like diagram (bands) and electropherograms (peaks)
High-throughput Detection
2) Microfluidic Chip Analysis
Test 12 Samples in 30 min
Dozens of Times Faster than Traditional GGE
3) Automatic Interpretation
Easy to use, self-developed core algorithm and software, instrument automation control
Automated interpretation and analysis of electrophoretic profiles by Gaussian fitting
Color-coded results are easy to see at a glance
The printed and output result report can be customized by the customer
4) Instrument Information
Product |
KUP Biomed Microfluidic Electrophoresis Analyzer |
Model |
MICEP-30 |
Structure and Composition |
It is composed of electrode system, chip system, detector system (optical), electronic control system and software system |
Software Information |
Microfluidic chip analyzer software V1.0 |
Supporting Reagents |
HDL-2b Subfractioning Kit (Microfluidic Electrophoresis) |
Repeatability |
Coefficient variation (CV) ≤ 10.0% |
Noise Level |
The noise value of each hole of the chip ≤ 1 |
Accuracy |
Relative deviation (B) ≤± 20.0% |
Precision |
Coefficient variation (CV) ≤ 10.0% |
Stability |
Relative deviation (B) ≤± 10% |
| Linearity | Linear Correlation Coefficient≥0.95 |
| Lowest Detection Limit | 90% detection rate for reference |
| Processing Capacity | 12 samples /30 min |
Host Size |
545 mm×450mm×340 mm |
Host Weight |
21kg |
